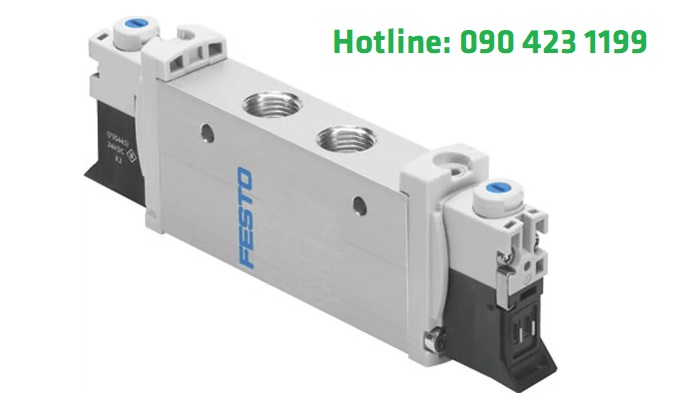

Van điện VUVG-B14Z-M32C-AZT-F-1T1L

VUVG-B14Z-M32C-AZT-F-1T1L

Van điện VUVG-B14Z-M32C-AZT-F-1T1L

Van điện từ festo ren G1/8

Type B1 H1 H2 L1 L2 L3 L4 L5
Van điện VUVG-B14-…-F-1T1L

Van điện VUVG-B14-…-F-1T1L-EX2C

Van điện VUVG-B14-…-F-1T1L-F1A

14.7 40.9 33.5 107.6 81 66.5 15.1 2.8



Ordering data

Description Part no. Type
Sub-base valve G1/8
3/2-way valve
External pilot air supply Normally closed, pneumatic spring return 8028235 Van điện VUVG-B14Z-M32C-AZT-F-1T1L
Normally open, pneumatic spring return 8028236 Van điện VUVG-B14Z-M32U-AZT-F-1T1L
2x 3/2-way valve
External pilot air supply Normally closed, pneumatic spring return 573476 Van điện VUVG-B14-T32C-AZT-F-1T1L
Normally open, pneumatic spring return 573477 Van điện VUVG-B14-T32U-AZT-F-1T1L
1x normally open, 1x normally closed, pneumatic spring return 573478 Van điện VUVG-B14-T32H-AZT-F-1T1L
Normally closed, mechanical spring return 573479 Van điện VUVG-B14-T32C-MZT-F-1T1L
Normally open, pneumatic spring return 573480 Van điện VUVG-B14-T32U-MZT-F-1T1L
1x normally open, 1x normally closed, mechanical spring return 573481 Van điện VUVG-B14-T32H-MZT-F-1T1L
5/2-way single solenoid valve
External pilot air supply Pneumatic spring return 573482 Van điện VUVG-B14-M52-AZT-F-1T1L
Mechanical spring return 573483 Van điện VUVG-B14-M52-MZT-F-1T1L
5/2-way double solenoid valve
External pilot air supply 573484 Van điện VUVG-B14-B52-ZT-F-1T1L
5/3-way valve
External pilot air supply Mid-position closed, mechanical spring return 573485 Van điện VUVG-B14-P53C-ZT-F-1T1L
Mid-position pressurised, mechanical spring return 573487 Van điện VUVG-B14-P53U-ZT-F-1T1L
Mid-position exhausted, mechanical spring return 573486 Van điện VUVG-B14-P53E-ZT-F-1T1L

Van điện 2x 3/2-way valve

External pilot air supply Normally closed, pneumatic spring return 8150399 Van điện VUVG-B10-T32C-AZT-F-1T1L-F1A
Normally open, pneumatic spring return 8141516 Van điện VUVG-B10-T32U-AZT-F-1T1L-F1A
1x normally open, 1x normally closed, pneumatic spring return 8141517 Van điện VUVG-B10-T32H-AZT-F-1T1L-F1A
Normally closed, mechanical spring return 8141518 Van điện VUVG-B10-T32C-MZT-F-1T1L-F1A
Normally open, mechanical spring return 8141519 Van điện VUVG-B10-T32U-MZT-F-1T1L-F1A
1x normally open, 1x normally closed, mechanical spring return 8141520 Van điện VUVG-B10-T32H-MZT-F-1T1L-F1A
5/2-way single solenoid valve
External pilot air supply Mechanical spring return 8150460 Van điện VUVG-B10-M52-MZT-F-1T1L-F1A
Pneumatic/mechanical spring return 8150397 Van điện VUVG-B10-M52-RZT-F-1T1L-F1A
5/2-way double solenoid valve
External pilot air supply 8150398 Van điện VUVG-B10-B52-ZT-F-1T1L-F1A
5/3-way valve
External pilot air supply Mid-position closed, mechanical spring return 8141521 Van điện VUVG-B10-P53C-ZT-F-1T1L-F1A
Mid-position pressurised, mechanical spring return 8141523 Van điện VUVG-B10-P53U-ZT-F-1T1L-F1A
Mid-position exhausted, mechanical spring return 8141522 Van điện VUVG-B10-P53E-ZT-F-1T1L-F1A
