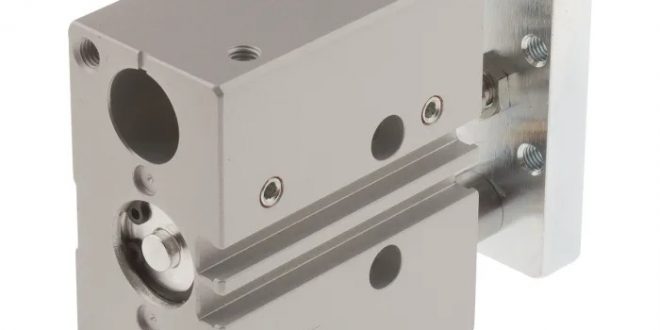

Xy lanh DFM-16-20-P-A-GF

Xy lanh DFM-16-20-P-A-GF

Thông số kỹ thuật Festo DFM-16-20-P-A-GF

Centre of mass distance of payload to Joch plate [mm] 50
Đường kính [mm] 20
Piston diameter 16 mm
Operating mode actuator unit Joch
Dampening P: Elastic silencer rings / plates double-sided
installation position arbitrary
Guide sliding guide
Construction set up Guide
Position detection For proximity switch
Operating pressure [bar] 2 to 10
Max. speed [m/s] 0,8
Principle of operation double acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Corrosion resistant class KBK 1 – low corrosion stress
ambient temperature [°C] -20 to 80
Impact energy at the end positions [J] 0,150
Max. permitted moment load Mx depending on stroke [Nm] 1,300
Max. usable load depending on the stroke at a defined distance xs [N] 56,00
Theoretical force at 6 bar, Return flow [N] 90
Theoretical force at 6 bar, flow [N] 121
Moving mass [g] 242,0
Product weight [g] 507,0
Alternative connections See product drawing
Pneumatic connection M5
Material information RoHs compliant
Cover material Aluminium wrought alloy
Seals material NBR
Housing material Aluminium wrought alloy
Piston rod material High-alloyed stainless steels
